LM939 Technical Parameter
| Feature | Value |
|---|---|
| Engine | YUNNEI 4108 Turbo (92KW) |
| Normal Load | 2400 kg |
| Operating Weight | 5850 kg (Counterweight included) |
| Bucket Capacity | 1.2 m³ |
| Bucket Width x Depth | 2100 mm x 550 mm |
| Overall Dimensions | 6780 mm x 2100 mm x 2830 mm |
| Wheelbase | 2560 mm |
| Wheel Track | 1690 mm |
| Maximum Dumping Height | 3500 mm |
| Maximum Dumping Reach | 1050 mm |
| Turning Radius | 5500 mm |
| Minimum Ground Clearance | 440 mm |

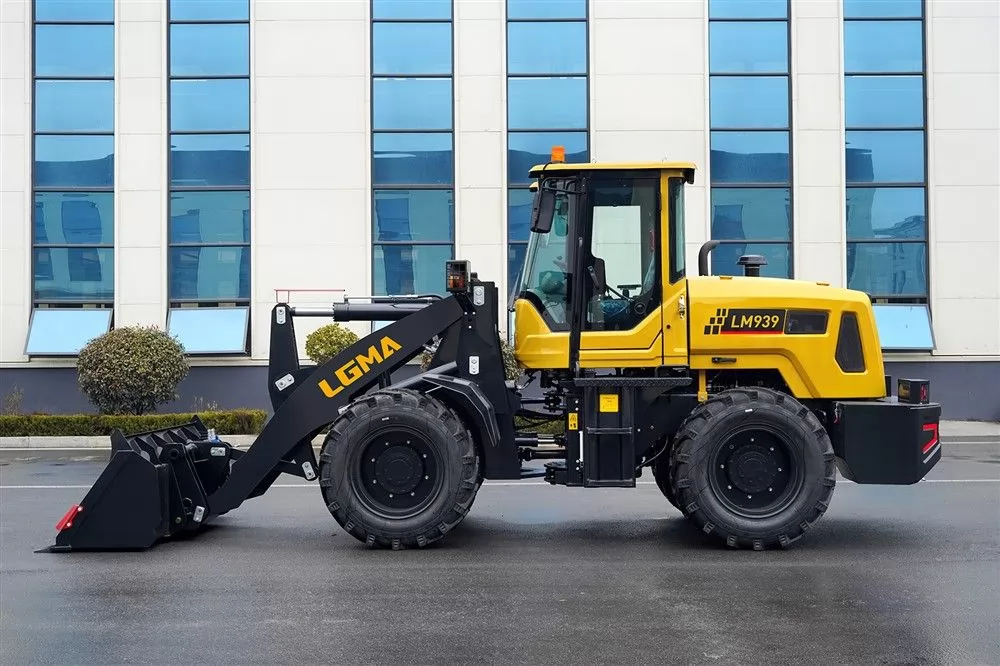

LM939 Photo Gallery
